HRX-1 interface

Portable adjustable robotic interface for upper limb neuromotor research

Download the datasheet (PDF)

This robotic interface is dedicated to investigating upper limb neuromechanics that span off from our clinical, neuroscience and human-robot interaction research. The current design allows for controlled actuation of wrist or elbow flexion/extension in horizontal and vertical planes.



The compact and light portable interface can be quickly installed by mounting it to a table with clamps. Ergonomic wrist design and adjustable arm support ensure human-robot joint alignment providing comfortable natural movements for various sizes of hand/arm.



The system can be used for single hand actuation (replaceable left/right wrist handle) or for bi-manual or for human-human collaborative experiments.



Torque and angular position sensing can be used for real-time feedback and to analyse performance and model individual neuromechanics. The robot can be controlled in current, velocity and position control modes and programmed in Matlab, Matlab Simulink, C/C++. The system can be easily used together with EMG and EEG sensing.

Key capabilities

  • +/- 140 degrees rotation

  • peak torque 4 Nm

  • angle and torque sensing

  • weight 4 kg

  • power 240-800 W

  • power supply (230 VAC to 20-30V , 12-26 A)

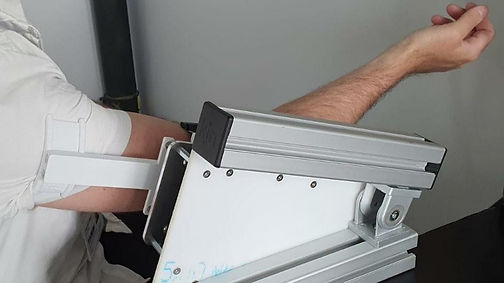

Wrist & Elbow configuration

The interface is easily reconfigurable for wrist and elbow settings for left or right hands with the help of replaceable ergonomic handles and arms supports

Bimanual setup

The robot can be used in bi-manual configuration to study left and right arm neuro-motor coordination

Vertical &
horizontal planes

The interface can be easily and steadily mounted to operate in different planes




Our team

The co-founders of HumanRobotiX

contact@humanrobotix.co.uk

Etienne Burdet

(also a Professor at Imperial College London)

Ildar Farkhatdinov

(also a Senior Lecturer at Queen Mary University of London)

Aaron Yurkewich

(also a Research associate at Imperial College London)

Joshua Brown

(also a Research assistant at Queen Mary University of London)

Purchasing the robot



  • Please, email us to receive quotes for the HRX-1 robot <contact@humanrobotix.co.uk>

  • We are setting up the online payment here to purchase the robot and its accessories.

  • General terms & conditions

  • Terms and conditions maybe customised.
